Disable SMB Version 1.0 in Windows 10

By default SMB version 1.0 is enabled in Windows 10. As this was last needed in Windows XP and Windows Server 2003 it’s quite old, newer versions of SMB are more secure and have additional features. If you no longer need to support these older versions of SMB file shares, it’s a good idea to disable SMB version 1.0, or even remove it completely, as a number of recent vulnerabilities specifically affect SMB version 1.

Windows XP was the last client supported version of Windows to only use SMB version 1, now that it’s no longer supported Microsoft are planning on shipping Windows with SMB 1 disabled by default in the future. It’s currently enabled by default for compatibility reasons with these older operating systems, however when we’re in a world where SMB 1 does not need to be supported it will not be used.

Just recently in March 2017 Microsoft patched a remote code execution vulnerability in SMBv1. By having SMB v1 disabled, these sorts of vulnerabilities will not be a problem for you.

Audit SMB v1 Traffic

Before disabling or removing SMB v1, it’s worth checking if our network is actively using it, as turning it off could cause problems if it’s actually required.

We can audit SMB v1.0 traffic in our network to see if it’s still being used by running the following PowerShell cmdlet.

Set-SmbServerConfiguration –AuditSmb1Access $true

We can view this log by running the following PowerShell cmdlet.

Get-WinEvent -LogName Microsoft-Windows-SMBServer/Audit

You can also open event viewer and browse to Applications and Services > Microsoft > Windows > SMBServer > Audit. This is a good way of determining whether SMB 1 is still in use within your network before disabling it.

Realistically as long as you have no Windows XP or Windows Server 2003 systems or older running on your network, this should not cause any problems as Windows should negotiate SMB version 2 or 3.

Disable SMB Version 1.0 Server Configuration

SMB can be disabled both on the “server” and client side. We’ll first start off by showing you how to disable SMB version 1.0 on the server side. In Windows 10, the server side would be if your Windows 10 system is offering SMB file shares over the network, while the client side is the system connecting to the share.

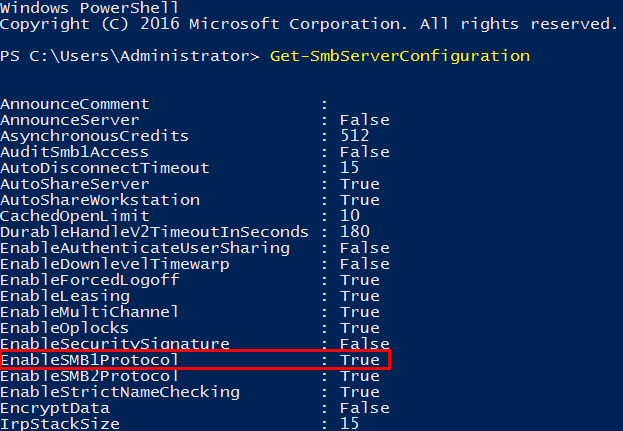

Open PowerShell with administrative privileges. If we run the ‘Get-SmbServerConfiguration’ cmdlet, we can see that by default EnableSMB1Protocol is set to True, as shown below.

PowerShell Get-SmbServerConfiguration EnableSMB1Protocol

Note that if you set AuditSmb1Access as shown previously that this value also shows in this output.

We can change this with the ‘Set-SmbServerConfiguration -EnableSMB1Protocol $false -Force’ cmdlet, as shown below.

PowerShell Set-SmbServerConfiguration EnableSMB1Protocol

We add -Force on the end otherwise we get prompted for confirmation, this allows us to simply run one command with no input required.

Now if we run the ‘Get-SmbServerConfiguration’ cmdlet again, we can see that EnableSMB1Protocol is now showing as False.

PowerShell Get-SmbServerConfiguration EnableSMB1Protocol False

Remove SMB v1

We can go a step further, and instead remove SMB version 1 from Windows 10 to prevent it from serving SMB shares over version 1 with the following PowerShell cmdlet.

Disable-WindowsOptionalFeature -Online -FeatureName SMB1Protocol -Remove

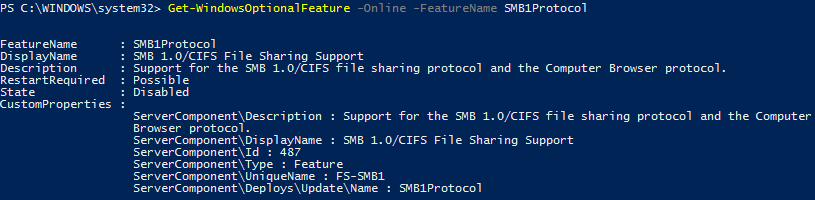

This will require a reboot to complete. Afterwards you can run ‘Get-WindowsOptionalFeature -Online’ and confirm that SMB1Protocol shows as disabled.

SMB Version 1 Disable

This is a good step to do after you’ve had SMB 1.0 disabled for a while and are sure it’s not required. Completely removing it reduces the attack surface further and frees disk space.

Disable SMB version 1.0 Client Configuration

By disabling the server side configuration as shown above, our Windows 10 system will no longer offer SMB v1 shares. The SMB client however is still able to attempt to connect to an external SMB v1 share on another server, unless we also disable the SMB v1 client. This is done by running the following commands in either PowerShell or Command Prompt with administrative privileges.

sc.exe config lanmanworkstation depend= bowser/mrxsmb20/nsi
sc.exe config mrxsmb10 start= disabled

Disable SMB 1.0 Client

Summary

With these steps you have now seen how to disable SMB version 1.0 in Windows 10 on both the server and client side using Windows PowerShell. This can help secure your Windows system as SMB v1 is considered an older protocol with many known vulnerabilities that have been discovered recently.
